NWP-FL1
The NWP
floor printer
High-resolution, full-color printing brought directly to your floors. Built for versatility and precision, the NWP-FL1 puts vibrant, durable designs on a wide range of surfaces and turns an ordinary floor into a canvas.
A wall and floor 2-in-1 printer
The NWP-FL1 is an accessory for the NWP wall printer that transforms it into a floor printing machine. Because it uses the print head unit and main case from the wall printer you already own, it is a cost-effective, easy-to-assemble way to expand what you can print.

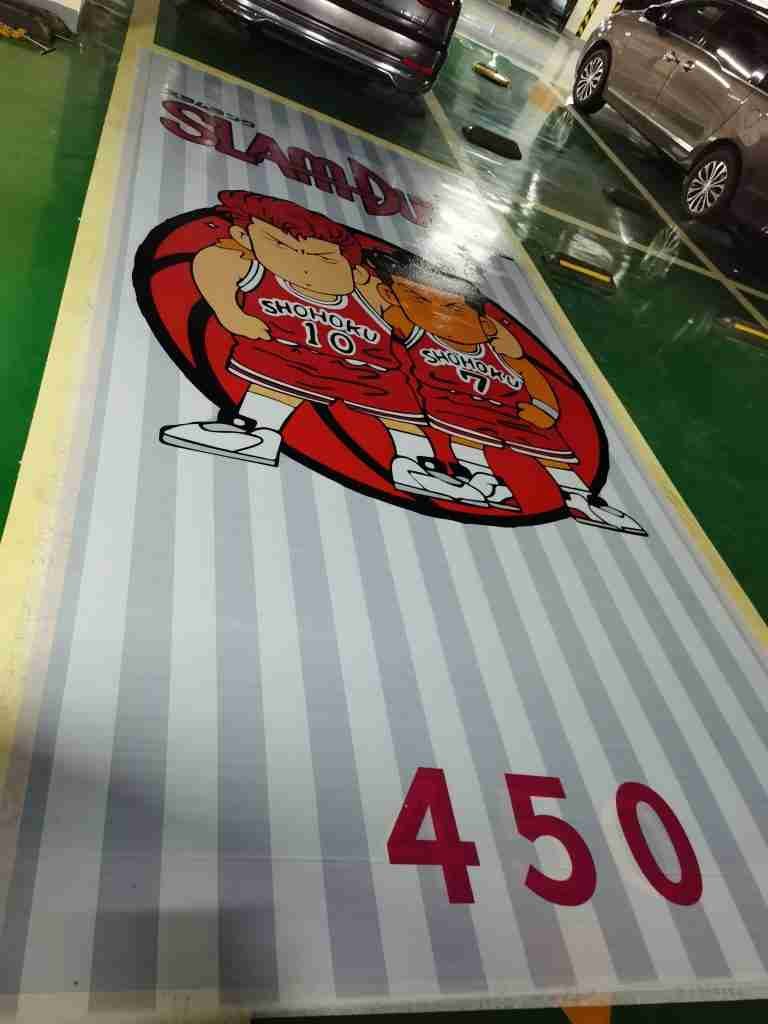

Direct-to-floor printing for any surface
The NWP floor printer is a digital printing system built specifically for high-quality, direct-to-surface printing on floors. Using UV printing technology, it prints vivid, durable graphics across a wide range of materials.
A cost-effective and eco-friendly alternative
Traditional floor decoration means expensive adhesive PVC films, labor-intensive installation, or costly hand-painted murals. The NWP-FL1 prints full color directly onto cement, brick, asphalt, metal panels and more, using eco-friendly UV inks for precise color reproduction and real durability — a faster, more economical, more sustainable way to change a floor.
Key features
What the NWP-FL1 does
Direct-to-floor printing
Engineered to print directly onto flooring materials including cement, brick, asphalt, and metal panels, which opens up both creative and functional floor designs.
High-resolution output
Advanced printing technology delivers sharp, vivid images, capturing every detail of a design with exceptional clarity.
Durable, long-lasting prints
Specialized UV-curable inks produce prints that resist wear and tear, suiting high-traffic areas and outdoor applications.
User-friendly operation
An intuitive interface and streamlined controls make the machine accessible at any experience level, with setup and operation quick enough for fast project turnaround.
Versatile applications
Suited to commercial spaces, public buildings, campuses and event venues — custom floor graphics, advertisements, wayfinding signage, and decorative art.
Wall and floor, one platform
The NWP-FL1 uses the print head unit and main case from NWP wall printers, so it expands what you can print with minimal extra equipment and no second training curve.
Materials
Prints on
- Wood
- Cement
- Ceramic tile
- Asphalt
- Brick
- Lime
- Epoxy resin
- Metal panels
Process
From bare floor
to finished graphic
Clean the surface
Start from a clean floor so the primer and ink bond properly.
Apply primer
Prime the area to be printed.
Set up the printer
Position the machine and rails over the print area and configure the job.
Print directly
The head passes over the floor, laying and curing ink as it goes.
Apply coatings
Finish with a protective coating suited to the traffic the floor will take.
Technical data sheet
NWP-FL1
specifications
Printing
- Printing technology
- Direct-to-object printer, downwards
- Technology
- On-demand piezo inkjet system, LED UV curing system
- Printing speed
- At W 1.5m × L 3.0m, one print head model at 1440 dpi: 2.5 hours (1.8 m²/hr)
Color & ink
- Colors
- Cyan, magenta, yellow, black, white — white prints behind CMYK or independently
- Colorant type
- Nazdar 260 or 270 series digital UV curable ink
- Ink consumption
- Typical full-color image estimate: 20ml/m² (without white)
Print area
- Width
- Models at 2.2m, 3.3m and 4.4m. With the stitching program, printable width extends beyond 4 meters
- Length
- Unlimited
Supplied by the customer
- Customer supplied
- UPS battery, primer and coating
See the NWP GT3200 wall printer — the NWP-FL1 shares its print head unit and main case.
Get pricing and details
Tell us about the floors you want to print and we will come back with a quote and a time to see the machine run.
