NWP GT3200
Epson UV vertical
wall printer
A high-precision, user-friendly vertical printer engineered to print directly on virtually any surface — plaster, wood, leather, plastic, acrylic, stainless steel, glass and more. Sharp, vibrant, durable results across a wide range of applications.
Versatility for any application
From home and office wall décor to outdoor murals, custom roller blind designs, and direct printing on glass doors and windows, the NWP GT3200 adapts to the project in front of it.
Brilliant color reproduction
Professional color control software reproduces images with true-to-life vibrancy and accuracy. The machine also supports Braille tactile printing and 2.5D to 3D raised printing effects, adding real depth and texture to a design.
Robust hardware, capable software
Engineered for stability and precision through careful design, high-quality manufacturing, and a precise assembly process. Real-time image previews, ink consumption tracking, and print time estimates keep the workflow predictable.
Key features
Built around precision
Advanced printing technology
CMYK plus white five-color printing on a genuine Epson i3200 print head, for vibrant, accurate color reproduction.

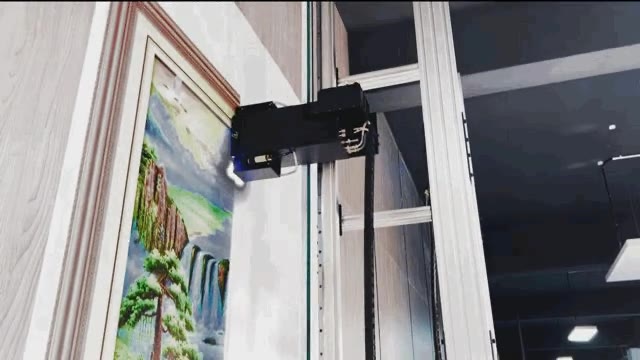

Dual UV curing system
Integrated double UV lamps with temperature control cure ink droplets on contact, producing vivid and durable prints.

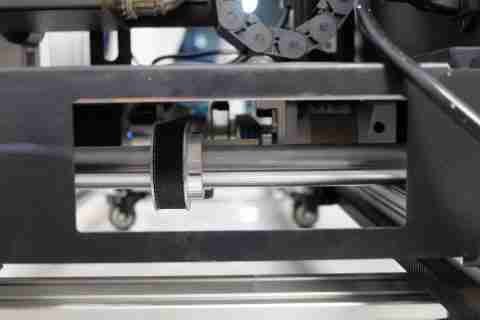

Robust and stable design
A stable aluminum platform and well-engineered structure minimize vibration, which is what keeps print precision high.
Flexible vertical extension
Adjustable vertical extensions accommodate a range of wall heights, so the machine adapts to the project rather than the other way around.
User-friendly interface
A built-in touchscreen PC and wireless gigabit control let you manage print jobs from the machine itself or from a tablet, laptop, or desktop.
Comprehensive software support
Preview functions, real-time printing speed display, and accurate ink consumption calculations, with ICC profile support through FlexiPrint RIP software, included with the printer.
Materials
Prints on
- Plaster
- Wallpaper
- Wood
- Concrete
- Metal
- Fabric
- Tile
- Acrylic
- Brick
- Leather
- Plastic
- Glass
- Stainless steel
Smart, safe and efficient
Designed to protect itself
Easy to assemble and operate
A streamlined setup and intuitive software make printing simple and efficient.
Advanced safety features
Protective casing shields key components, while customizable height limits and UV lamp temperature controls improve safety and energy efficiency.
Print head protection
In the event of a power failure, the print head unit descends slowly rather than dropping, preventing damage.
Automated maintenance
Semi-automatic and automatic maintenance programs keep the machine in good order, even across extended downtime.
Components
A closer look
at the machine
How it works
Three steps to a
finished wall
Prepare graphics and RIP processing
Create your image and run it through the RIP software to process it for printing.
Set the print parameters
Import the pictures into the printer's computer using a USB flash drive and configure the printer settings.
Test the print head and print
Use the software to test the print head nozzles and confirm they are in good condition, then print.
Technical data sheet
NWP GT3200
specifications
Printing
- Printing technology
- Piezoelectric DOD (Drop On Demand) inkjet
- Nozzle resolution
- Up to 1440 dpi
- Horizontal print resolution
- 1440 dpi
- Vertical print resolution
- 720 dpi
- Printing speed
- Up to 3 m² / hour
- Multi-pass printing
- 4, 8, 12 and 16 pass
- Print direction
- Bidirectional, unidirectional
- Ink drop control
- Waveform fully controls each nozzle to eject ink droplets
Print head
- Number of print heads
- 1
- Print head
- Genuine Epson i3200, 8-channel, made in Japan
- Temperature control
- Integrated thermistor
- Operating temperature range
- 40°C
Ink & curing
- Ink type
- LED UV curable ink, 395nm curable
- Ink colors
- Cyan, magenta, yellow, black, white
- Ink tank capacity
- Five 180ml tanks; the white tank has an electric stirrer
- Viscosity
- 7 mPa·s
- Surface tension
- 27 ±5 mN/m
- Ink curing system
- Two UV LED curing lamps with air cooling
- Curing output power
- Up to 4 W/cm², adjustable
- Curing control
- On demand, turns on and off automatically
Size & positioning
- Image width
- Unlimited
- Image height
- Max. 350cm (11'6"), and the print stops about a foot below the ceiling
- Correction of wall unevenness
- Up to 10cm
- Wall distance control
- Two Banner brand ultrasonic sensors automatically detect the shape of the wall

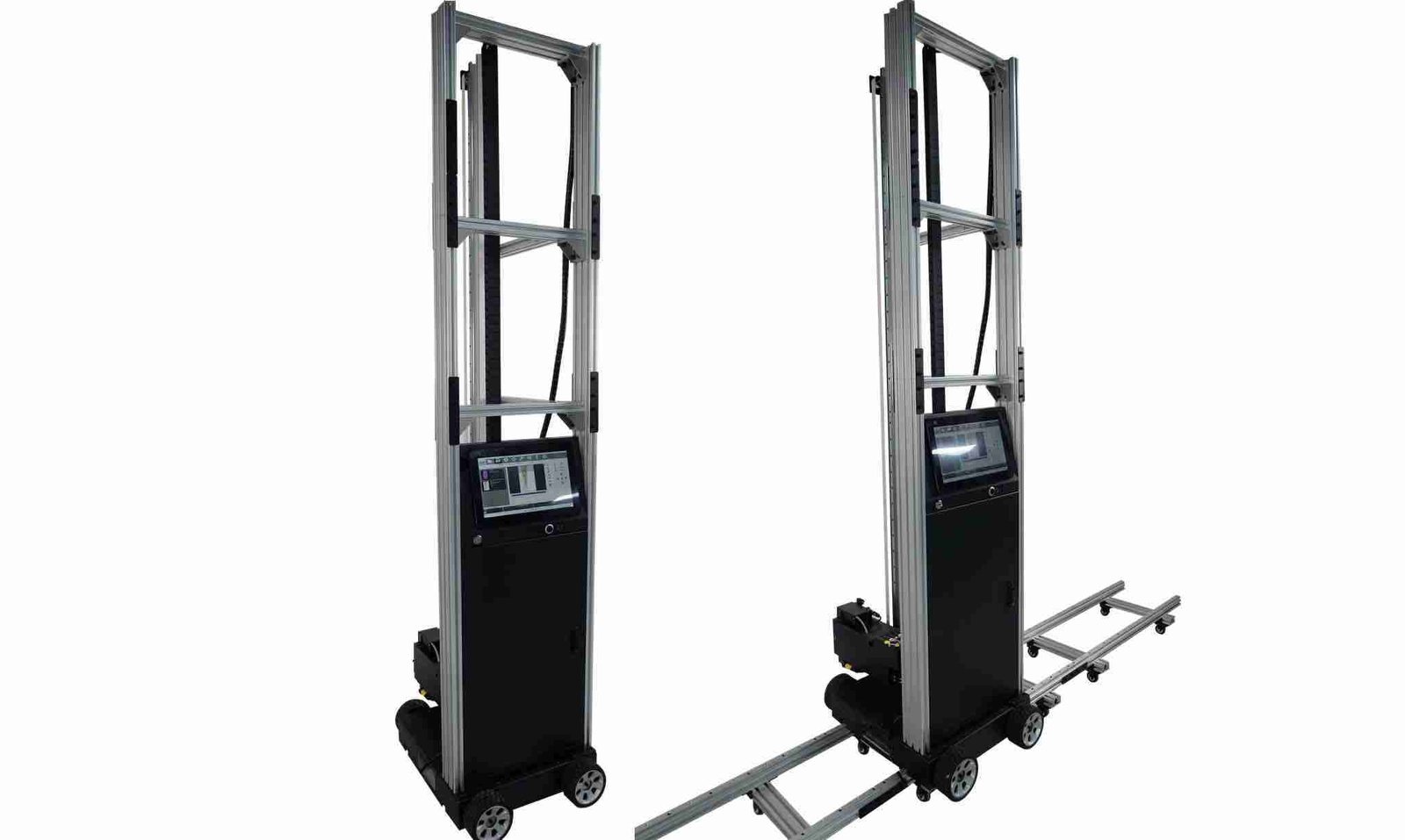

- Horizontal drive (X-axis)
- Wheel driving, track gear driving, fully program controlled
- Vertical drive (Y-axis)
- Belt gear driving system, fully program controlled
- Print head drive (Z-axis)
- Motor driving system, fully program controlled
Control & software
- Operator control
- Built-in 13.3-inch touchscreen computer, 8G RAM, 256GB SSD, USB 3.0
- GUI software
- NWP 2.0 GUI software
- RIP software
- FlexiPrint, included with the printer, no licensing fees; spot print
- Operator control languages
- English, Spanish, German, Italian, French, Russian, Dutch, Hindi, Portuguese
- RIP software languages
- English, Portuguese, French, Italian, German, Spanish, Chinese, Japanese, Korean, Dutch, Danish, Finnish, Russian
Power & environment
- Total machine weight
- About 171 lbs
- Main case
- 67 lbs
- Print head unit
- About 16 lbs
- Power requirements
- 100–240V AC, 50–60Hz
- Power consumption
- Max. 350W, standby 100W
- Recommended operating temperature
- 15°C to 40°C (59°F to 104°F)
- Humidity
- Under 90%
- Noise
- Approx. 60dB in operation
Compliance
- Certification
- CE / RoHS
- Warranty
- 12-month warranty, additional year optional
Get pricing and details
We combine technology with creative expertise to deliver exceptional print quality. Tell us what you want to print and we will come back with a quote.
